ATR CustomTools Viewer

ATR CustomTools Viewer has a user interface called Ribbon, which is based on tabs and groups instead of a menu bar.

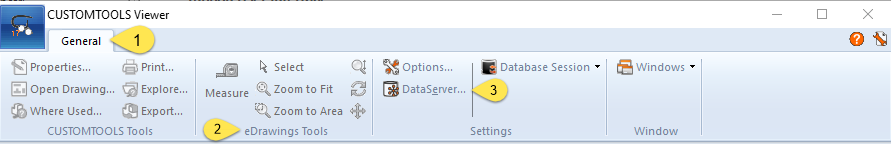

The Ribbon interface in the ATR CustomTools Viewer contains the following main elements:

• Tabs: Task-oriented tabs help you find the correct command based on your current task.
• Groups: Each tab breaks tasks into groups of commands.
• Command buttons: Each group contains command buttons to execute actions.

Command Name	Command Description	Ribbon Group	Video Link
Properties	View the Properties of the selected document. The values of Properties are stored in the SOLIDWORKS document properties, model configuration properties, and the ATR CustomTools Database.	ATR CustomTools Tools	Watch Video
Open Drawing	View and open related drawings of the selected entity. If no entity is selected, the command refers to the open document.	ATR CustomTools Tools	Watch Video
Where Used	View and locate where the selected entity is used. If no entity is selected, the command refers to the open document.	ATR CustomTools Tools	Watch Video
Print	Batch print your SOLIDWORKS documents.	ATR CustomTools Tools	Watch Video
Explore	Open the currently active/selected document file location in Windows Explorer.	ATR CustomTools Tools
Export	A command for exporting SOLIDWORKS model structures with the desired property data into an external information system. Different kinds of reports can also be produced with the Export feature.	ATR CustomTools Tools	Watch Video
Measure	The Measure tool measures exact dimensions in part, assembly, and drawing documents.	eDrawings Tools	Watch Video
Select	Select is the default mode when you are not in a command. Use the Select tool to select items (model entities, drawing views, etc.) in a document.	eDrawings Tools
Zoom to Fit	Zooms the graphics area so the whole document fits at once.	eDrawings Tools	Watch Video
Zoom to Area	Zooms closer to the selected area.	eDrawings Tools	Watch Video
Zoom In/Out	Zoom in or out. First, click Zoom In/Out and then drag up to zoom in or drag down to zoom out. You can also zoom in by pressing the Z key or zoom out by pressing SHIFT+Z. The mouse wheel can also be used to zoom in/out. Spin the wheel forward to zoom out and spin backward to zoom in.	eDrawings Tools	Watch Video
Rotate	You can use the Rotate tool in ATR CustomTools Viewer to rotate part and assembly models, as well as drawing, detail, and section views of drawings.	eDrawings Tools	Watch Video
Pan	Pan the document in the graphics area.	eDrawings Tools	Watch Video
Options	Manage the options of ATR CustomTools.	Settings
DataServer	Change or define the database server connection settings or an active profile and database.	Settings
Database Session	A menu that you can use as a shortcut to Login or Logout the ATR CustomTools database.	Settings

The commands in ATR CustomTools Viewer are selection sensitive. This means that commands are always applied to the selected component. You can select the desired component directly from the model or from the Design Tree.

• Open Drawing
• Where Used
• Print
• Export
• See the common tips and terminology related to the ATR CustomTools Viewer
