ATR CustomTools Viewer Glossary And Tips
ATR CustomTools Administration and ATR CustomTools Viewer use the ribbon user interface. In ATR CustomTools Viewer, some commands are available only when a document is open.
The commands in ATR CustomTools Viewer are selection sensitive. This means commands are always applied to the selected component. You can select the desired component directly from the model or from the Design Tree.
 |
The File menu. In the ATR CustomTools Viewer help, the File menu term refers to this button in the ribbon. |
Click
to hide the Search feature
in ATR CustomTools Viewer. When the pane is hidden, it appears again when you move the mouse pointer
onto the Viewer Search Pane text on the right side of the ATR CustomTools Viewer window.
When you have an assembly open with one or more sub-assemblies, you can expand or collapse the assembly
structure using the
and
buttons located at the beginning
of each node with sub-items.
If you select a part from the 3D model that refers to an assembly which is collapsed in the Design Tree, the referring assembly is automatically expanded in the Design Tree and the part selected in the 3D model is highlighted.
You can also handle virtual components with the ATR CustomTools Viewer.
Assemblies saved with some components suppressed are shown in ATR CustomTools Viewer without those components. To show suppressed components in ATR CustomTools Viewer, unsuppress them in SOLIDWORKS, save the model, and then open it again in ATR CustomTools Viewer.
ATR CustomTools Viewer has a most recently used files list in its File menu. This list shows the files you have most recently opened.

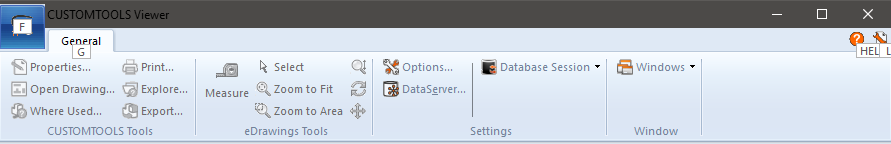

In ATR CustomTools Viewer, press the ALT key first, release it, and then press the key shown in the white square on the desired command to perform it. The following image shows how keyboard shortcuts are displayed in the ribbon after pressing the ALT key.
Ribbon keyboard shortcuts in ATR CustomTools Viewer.
